Davey Bronze Open Top Cleats
Solid bronze open top cleats made in England by Davey & Co. These cleats are beautifully cast and polished.
Their open top design makes open top cleats useful as both a cleat and part-time fairlead.
Available in a range of sizes and can be chrome plated to match existing stainless steel hardware if required (extra charges apply).

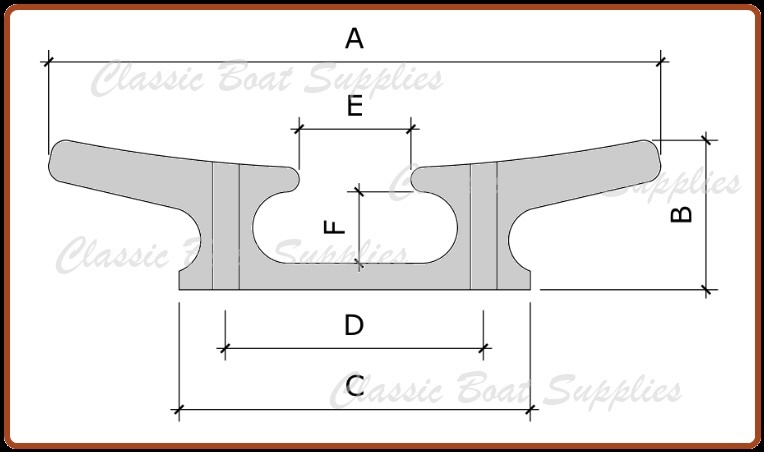

| SKU | Size (A) | Height (B) | Base Length (C) | Hole Centres (D) | Gap (E) | Internal Height (F) | Base Width | Fastenings |
|---|---|---|---|---|---|---|---|---|
| DVY-1078/GM/100 | 4" (100mm) | 1-1/4" (30mm) |
2-3/8" (60mm) | 1-5/8" (40mm) | 5/8" (15mm) | 5/8" (15mm) | 7/8" (22mm) | 2 x #8 Machine Screw |
| DVY-1078/GM/125 | 5" (125mm) | 1-3/8" (34mm) | 2-3/4" (70mm) | 1-3/4" (43mm) | 5/8" (15mm) | 5/8" (16mm) | 1" (25mm) | 2 x 1/4" Machine Screw |
| DVY-1078/GM/150 | 6" (150mm) | 1-3/4" (42mm) | 3-1/8" (80mm) | 2" (48mm) | 11/16" (17mm) | 3/4" (20mm) | 1-1/8" (28mm) | 2 x 1/4" Machine Screw |
| DVY-1078/GM/175 | 7" (175mm) | 2" (50mm) | 3-1/2" (90mm) | 2-3/16" (54mm) | 3/4" (20mm) | 1" (25mm) | 1-1/4" (32mm) | 2 x 5/16" Machine Screw |
