ePropulsion Spirit 2 Electric Outboard with Remote Control - Compact, Powerful and Portable Design
Hydrogeneration - Up to 3kW Power (in sport mode) - Silent & Powerful
ePropulsion expands the Spirit range to 2kW with the introduction of the new Spirit 2, a powerful battery-integrated electric outboard. This upgraded model delivers enhanced power while maintaining a similar compact size.
Featuring a 1.5kWh battery, the Spirit 2 revolutionises the experience for dinghies and day cruisers, providing silent, eco-friendly power at 21 kg.
Its hydrogeneration function allows the battery to recharge while under sail, maximizing battery value and optimizing space for effortless adventures. Also available in a tiller version for tenders and sailing boats.
2 year warranty (non-commercial use)
An additional Spirit 2 battery can be purchased to extend the range of this motor.
SPECIFICATIONS
- Nominal Power: 2 kW
- Maximum Power (in Sport Mode): 3 kW
- Battery Capacity: 1539 Wh
- Battery Life: 1000 cycles at 80% SoH
- Charging Time: Standard charger: 8 Hrs / Fast charger: 2 Hrs
- External Battery: ePropulsion E Series Battery (sold separately)
- Charging Temperature: -15°C - 60°C. Charging below 0°C requires the use of fast charger (with battery communication function)
- Storage Temperature: 5°C - 40°C
- Rated RPM: 1700 to 2100
- Trim Angle Adjustment: 0°, 7°, 14°, 21°
- Tilt Angle: 70°, 90°
- Shallow Water Mode Tilt Angle: 35°
- Steering Range: ±90°
- Propeller: 2-blade composite propeller, diameter 240mm, pitch 167mm

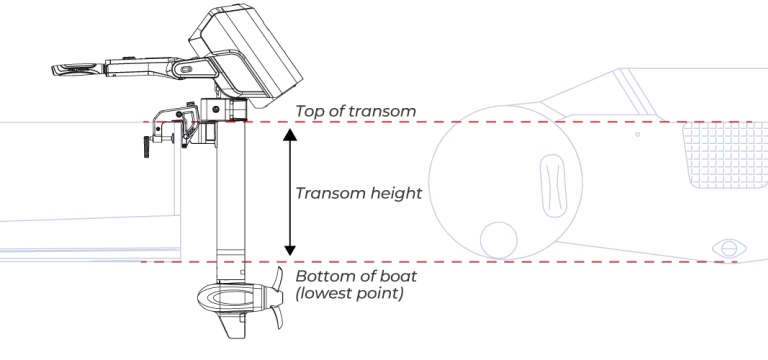

| Part Number | Shaft Length | Suits Transom Height | Dimensions | Motor Weight (excluding bracket) | Battery Weight | Total Weight |
|---|---|---|---|---|---|---|
| EPP-SU-2000-SR | Short | 40-50cm | 410 x 190 x 1015mm | 10.4kg | 10.4kg | 20.8kg |
| EPP-SU-2000-LR | Long | > 50cm | 410 x 190 x 1140mm | 10.7kg | 10.4kg | 21.1kg |
PERFORMANCE:
| Power (W) | Speed (knots/mph/kph) | Runtime** (hh:mm) | Range (nm/mi/km) |
|---|---|---|---|
| 500 | 4.0 / 4.6 / 7.4 | 3:00 | 11.3 / 13 / 21 |
| 1000 | 5.2 / 6.0 / 9.6 | 1:48 | 8.3 / 9.6 / 15.4 |
| 2000 | 9.5 / 10.9 / 17.5 | 0:54 | 7 / 8.1 / 13 |
| 3000 Sport Mode * | 11.3 / 13.0 / 21.0 |
* This performance data is based on an 11.5-foot aluminum boat weighing 65 kg, with one person and one Spirit battery in calm lake water. Actual speed, range, and running time may vary due to different boat types, loads, weather conditions, and other factors. Sport Mode can last up to 1 minute with a minimum battery state of charge (SOC) of 20%, and the temperature must be within safe limits.
** The runtime is measured from 100% to 5% SoC. Below 5% SoC, the power will be limited to a maximum of 50 W, enabling the Spirit 2 to continue operating at 50 W for for an extended period.
PERFECT FOR:
- Centre Console Boats
- Small Runabouts with Remote Steering
BENEFITS:
- High Power: The 2 kW battery-integrated electric outboard includes a 3 kW sport mode for enhanced performance. Its updated hydrodynamic design minimizes propeller vibration for a smoother ride.
- Expanded Battery Power: With a capacity of 1539Wh, the Spirit 2 enables extended operation for longer journeys, perfect for your adventures.
- Top Speed & Efficiency: Streamlined propeller design with a 240mm diameter optimized for hydrodynamics, rotating at 2000 RPM.
- Portable Power Station: Equipped with a Type-C port for charging devices, the Spirit 2 acts as a portable power station. It can charge your mobile device up to 100 times without the need for a wall plug, making it perfect for extended adventures.
- Compact Design: Weighing just 10.2-10.7 kg for the motor and 10.4 kg for the battery, the Spirit 2 is easy to handle and transport.
- Quick Connect & Battery Indicator: Experience hassle-free setup with a cable-free battery installation, complemented by an indicator for convenient monitoring. East to check the battery status without connecting it to the outboard.
- Detachable Motor Mount: The detachable clamp makes it easy to fit and remove the motor from the boat.
HYDROGENERATION

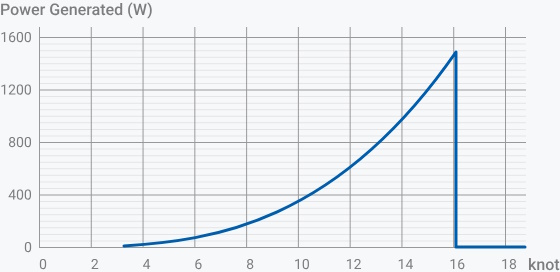

Hydrogeneration operates effectively between 3 knots and 16 knots, generating approximately 380 W of power at 10 knots, up to 1.5kW at 16 knots.
