Davey Wykeham Martin Furling Gear - Top Swivel Only
Wykeham Martin drum available in four sizes according to sail area (see table below). This bronze self-furling top swivel pairs with a bronze Wykeham Martin drum (sold separately) to create a complete furling system in the traditional style.
In continuous production for over 100 years, Wykeham Martin traditional furling gear has been successfully fitted to thousands of boats worldwide.
Cast in bronze from the original patterns, the parts are carefully machined, polished and assembled by English craftsmen to produce a beautiful and efficient furling system.
Fitted with stainless steel thrust races to ensure free running and easy sail furling.

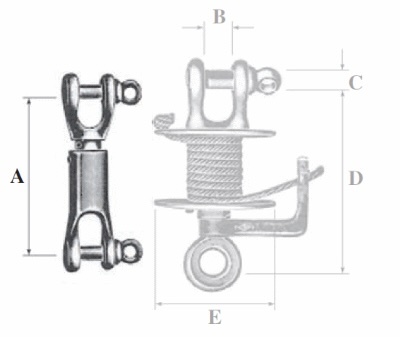

| SKU | Size | Approx Sail Area | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| DVY-9443/GM/01/TS | 1 | 50 sq.ft. (5 sq.m) | 72mm | 10mm | eye | 85mm | 62mm |
| DVY-9443/GM/2B/TS | 2B | 100 sq.ft. (10 sq.m) | 100mm | 18mm | 11mm | 128mm | 85mm |
| DVY-9443/GM/3B/TS | 3B | 200 sq.ft. (20 sq.m) | 110mm | 20mm | 12mm | 135mm | 95mm |
| DVY-9443/GM/4B/TS | 4B | 350 sq.ft. (35 sq.m) | 150mm | 28mm | 16mm | 165mm | 150mm |
