Seaflo Thru Hull Fittings Stainless Steel Cap
Made from premium materials, ensuring reliable strength, durability and performance that's built to last.
Through-hull fittings have a simple yet sturdy construction, making them easier to install.
This straight thru hull fittings is highly reliable and suitable for some corners and narrow areas.
Widely used in ships, yachts, boats to meet your daily needs.
Features
- Stainless steel cover.
- Ultra-durable.
- Anti-corrosion.
Materials
- Nylon+GF (316 Stainless steel cover).

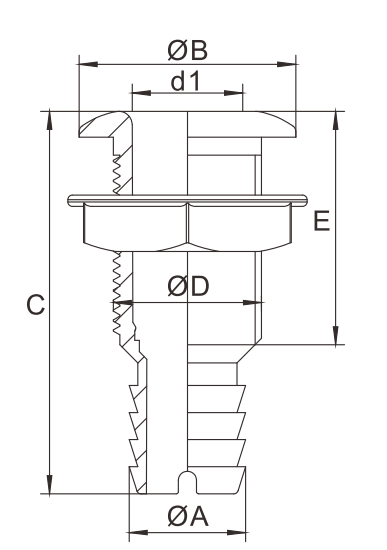

| Part Number | Fitting Diameter (A) | B | C | D | E | d1 |
|---|---|---|---|---|---|---|
|
SFL-SFTH3-0750-01S/S |
3/4” (19.4mm) | 48mm | 85mm | 32.8mm | 52mm | 24.5mm |
|
SFL-SFTH3-1000-01S/S |
1” (25.8mm) | 48mm | 85mm | 32.8mm | 52mm | 24.5mm |
|
SFL-SFTH3-1125-01S/S |
1 1/8” (29mm) | 48mm | 85mm | 32.8mm | 52mm | 24.5mm |
|
SFL-SFTH3-1250-01S/S |
1 1/4” (32.2mm) | 60mm | 95mm | 41.6mm | 55mm | 32mm |
|
SFL-SFTH3-1500-01S/S |
1 1/2” (38.5mm) | 60mm | 95mm | 41.6mm | 55mm | 32mm |
|
SFL-SFTH3-2000-01S/S |
2" (50.8mm) | 82.5mm | 130mm | 59.7mm | 80mm | 49mm |
