Seaflo Diaphragm Waste Pump
Single diaphragm waste pump designed to handle unmacerated black water toilet waste and Shower & Sink Drain Pump.
Self-priming pump can be run dry. Non-choke valve, no filter required.
Can pump a mixture of air and water.
Double outlet valves to ensure continuous flow.
Adjustable clamping ring allows the head assembly to be rotated 360 degree to accommodate plumbing position.

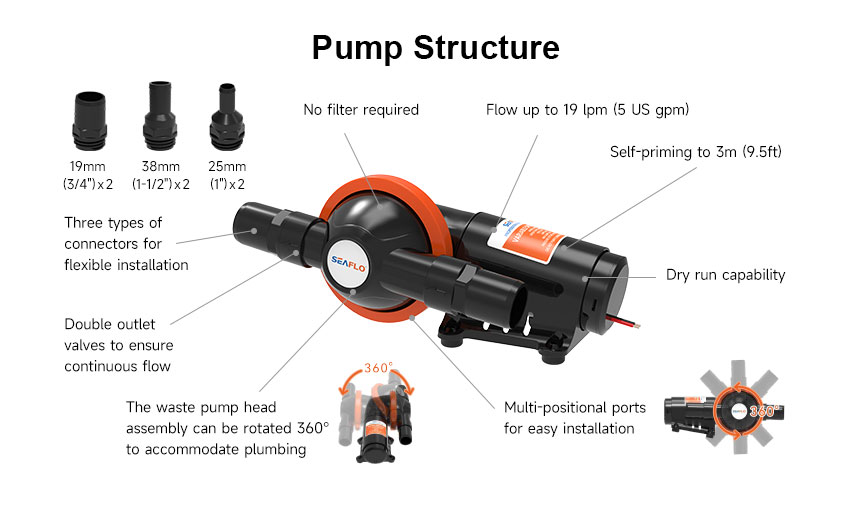

Features
- Single diaphragm pump designed.
- Uses multi-positional ports for easy mounting of the pump.
- Flow up to 19 lpm (5 US gpm).
- Self-priming to 3m (9.5ft), dry run capability.
- Connections for 38mm (1-1/2") or 19mm (3/4") ports.
- The waste pump head assembly to be rotated 360° to accommodate plumbing.
- No filter required.
- Double outlet valves to ensure continuous flow.

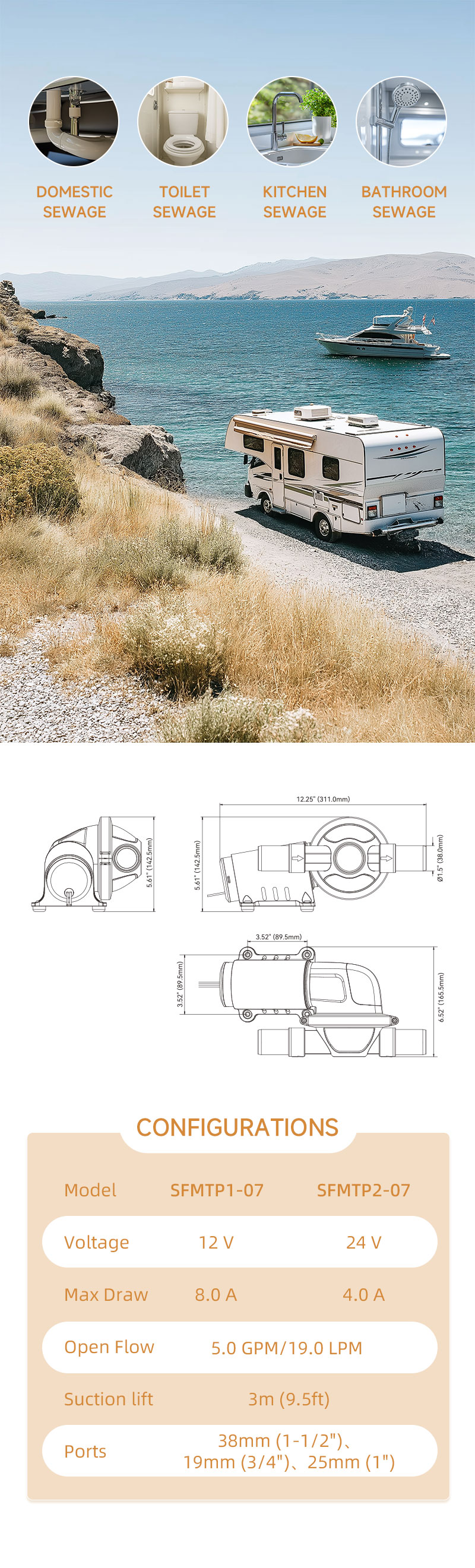

| Part Number | Volts | Max Draw | Pump Capacity | Ports | Suction Lift |
|---|---|---|---|---|---|
| SFL-SFMTP1-07 | 12V | 8.0A |
5.0GPM / 19.0L p/m |
38mm (1-1/2") or 19mm(3/4") or 25mm(1") |
3m (9.5ft) |
| SFL-SFMTP2-07 | 24V | 4.0A |
5.0GPM / 19.0L p/m |
38mm (1-1/2") or 19mm(3/4") or 25mm(1") |
3m (9.5ft) |
