Spartan Bronze Dinghy Quarter Knees
Gunmetal bronze quarter knees suitable for transom braces on small dinghies. Mounted with 4 x 10-gauge screws. Each bracket offers a 1/4" (6mm) hole for mainsheet bridle termination where a sailing rig is used.
Notes:
- This fitting has rather an interesting design and will not fit all boats due to each strap tapering in a different direction. On a boat with horizontal mounting surfaces the bracket will not be horizontal once fixed in place.

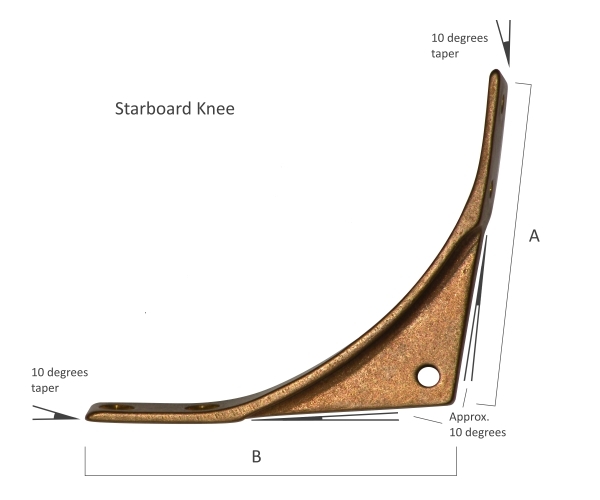

- Degrees of taper in the below diagram are approximate only.
- Port and starboard fittings are sold separately
| SKU | A | B |
|---|---|---|
| SPA-K477 | 3-3/4” (95mm) | 3-3/4” (95mm) |
| SPA-K478 | 3-3/4” (95mm) | 3-3/4” (95mm) |
