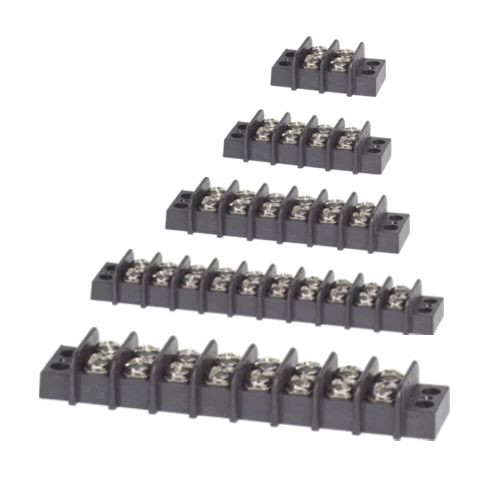

Blue Sea Systems 20A Terminal Block 2, 4, 6, 8 & 10 Circuit
20A terminal blocks with a closed back design that completely insulates power from the mounting surface.
Each screw pair forms one isolated circuit, while jumpers allow common circuits to be created.
Features
- 20A current rating.
- Available in 2, 4, 6, 8 and 10 circuit configurations.
- Closed back design completely insulates power from the mounting surface.
- Each screw pair is one isolated circuit.
- Jumpers allow creation of common circuits.
| Part Number | Circuit configurations. | Max Voltage | Continuous Rating | Screw Type | Wire Terminal Size |
|---|---|---|---|---|---|
| BSS-BS-2402B | 2 | 300V AC/DC | 20A |
#6 [M3.5] |
#6 [M3] |
| BSS-BS-2404B | 4 | 300V AC/DC | 20A |
#6 [M3.5] |
#6 [M3] |
| BSS-BS-2406B | 6 | 300V AC/DC | 20A |
#6 [M3.5] |
#6 [M3] |
| BSS-BS-2408B | 8 | 300V AC/DC | 20A |
#6 [M3.5] |
#6 [M3] |
| BSS-BS-2410B | 10 | 300V AC/DC | 20A |
#6 [M3.5] |
#6 [M3] |
