Spartan Manganese Bronze Chain Plate - Double Clevis
Manufactured in the USA by Spartan Marine, these solid manganese bronze deck plates provide a strong mounting point for rigging.
They come pre-drilled for through-bolting with four 5/16" machine screws.

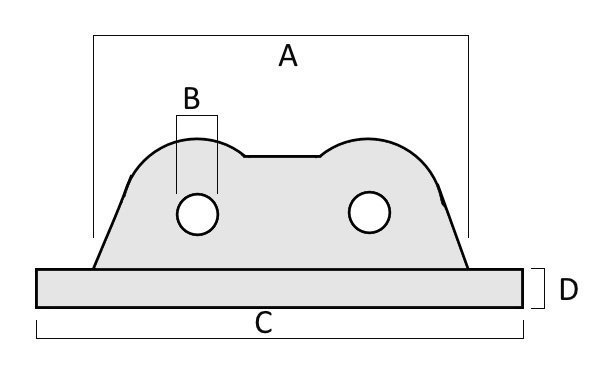

| SKU | Overall Length (C) | Width | Pin Diameter (B) | Eye Plate Length (A) | Plate Thickness (D) | Fastenings |
|---|---|---|---|---|---|---|
| SPA-C198 | 4-1/2" (115mm) | 2-3/8" (58mm) | 3/8" (10mm) | 2-3/4" (70mm) | 1/4" (6mm) | 4 x 5/16" Machine Screws |
