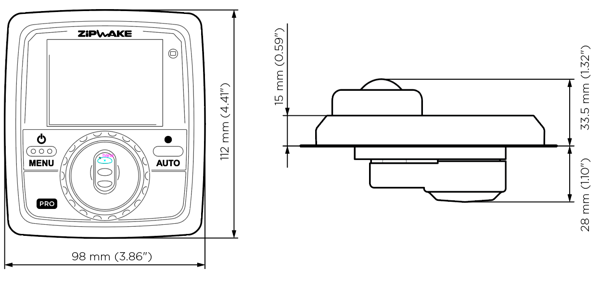

Take full command with the Zipwake Control Panel PRO.

The panel’s two unique control wheels provide easy, quick and intuitive manual control of running trim, heel or heading. However, the system normally operates in automatic control mode, which is enabled by a single press on the AUTO button. In this mode, the built-in high-frequency GPS, 3D gyro sensors and robust motion controller automatically ensure dynamic elimination of un- comfortable and dangerous boat pitch and roll.

Push the AUTO BUTTON – and GO!

The system provides continuous feedback of boat speed, turning radius, pitch and roll angle, as well as the interceptors’ positions, on a 2.8” sunlight- readable wide viewing color display.

The panel’s waterproof design withstands harsh marine conditions in open boats or on a flybridge. The sockets for connecting peripherals are located on the rear of the panel. In addition to connectors for the system’s distribution unit and multiple control panels, external GPS and NMEA 2000 equipment can be connected. The system can also be connected to the ignition key for automatic system power-on. A waterproof cap conceals the USB interface that allows for future software upgrades and ensures that the Zipwake Dynamic Trim Control System is future-proof.

NEW INTERFACE

Our new interface has been refined and polished to deliver a smoother, more intuitive user experience. Designed with the operator in mind, it ensures the right information is presented at the right time — clearly and efficiently.
